Papermaking Machines

Mechanical Drawing of a papermaking machine

This mechanical drawing of a papermaking machine from 1910 was made by Rice, Barton, and Fales Machine and Iron Co., Worcester, MA. Rice Barton still exists, you can read about their history here –

http://www.ricebarton.com/history.html

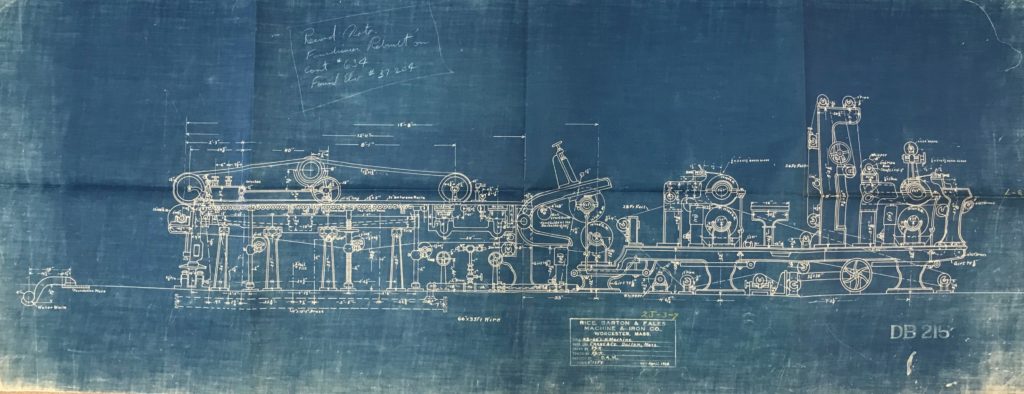

1910 drawing, full view

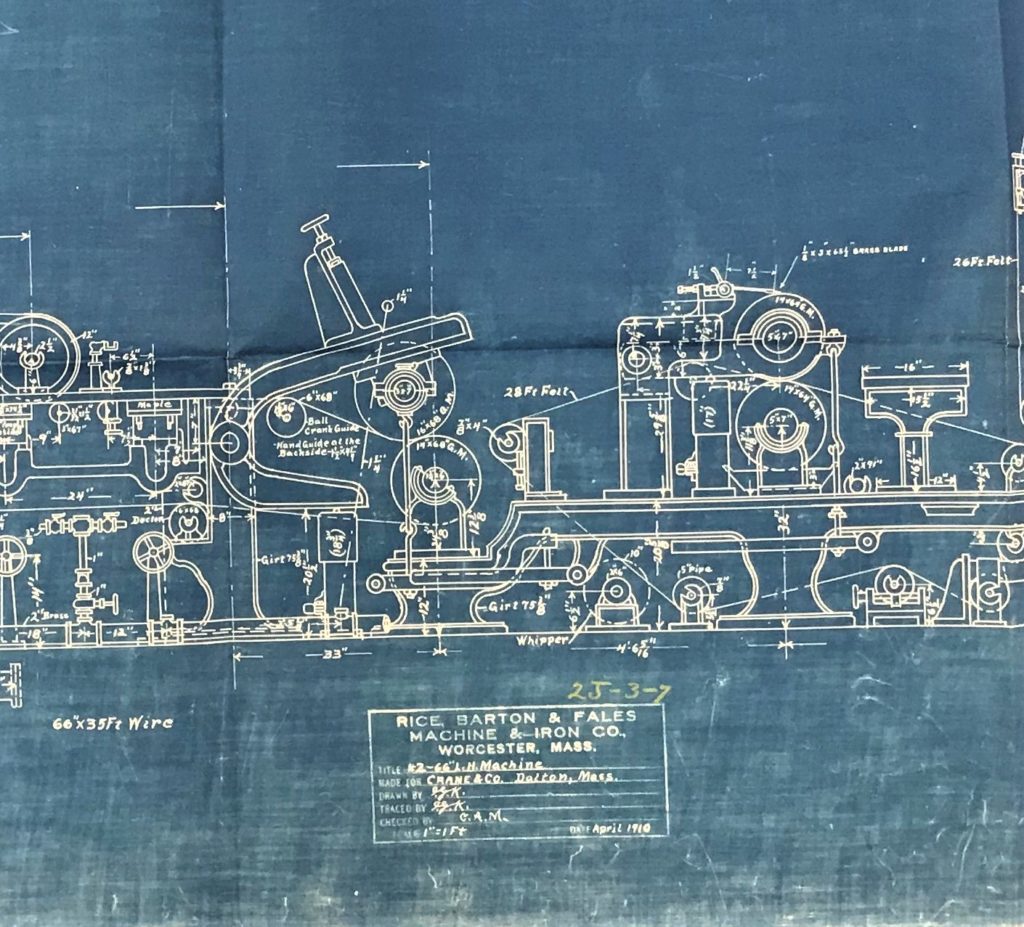

1892, close up

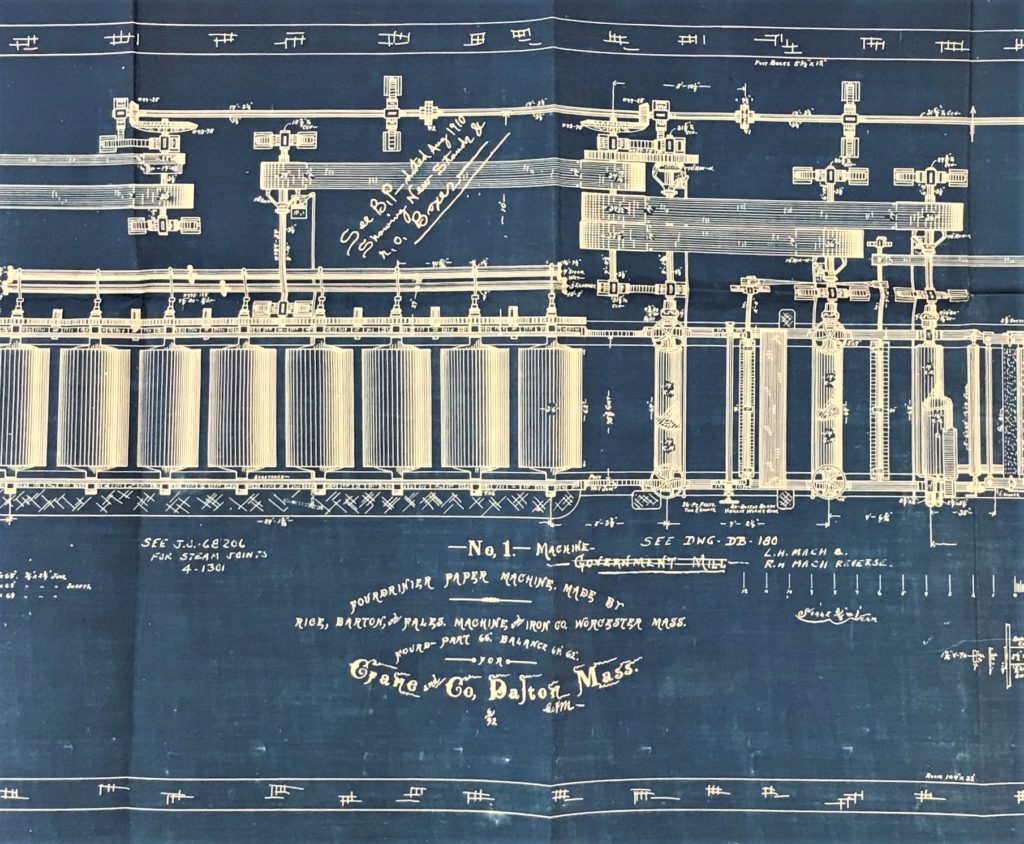

This mechanical drawing is also by Rice, Barton, and Fales Machine and Iron Co., Worcester, MA. It is of a papermaking machine that was installed at Crane in 1892.

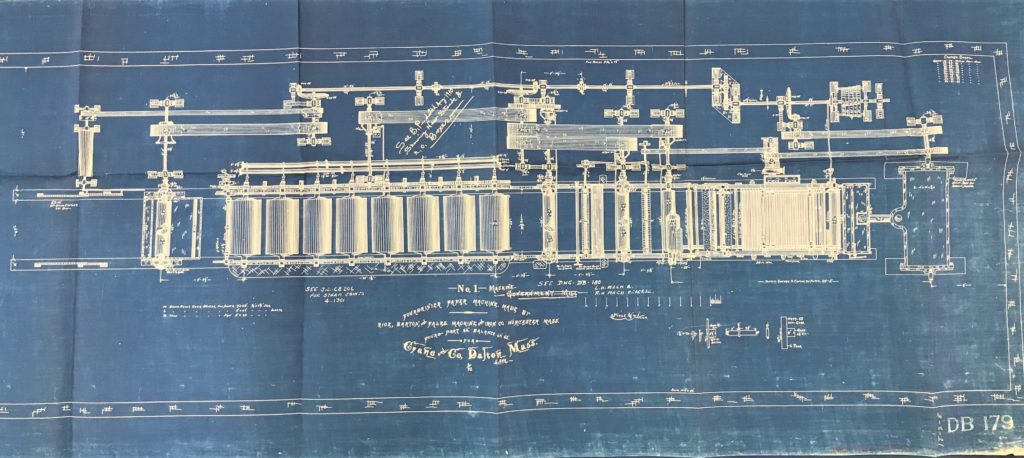

1892, full drawing
